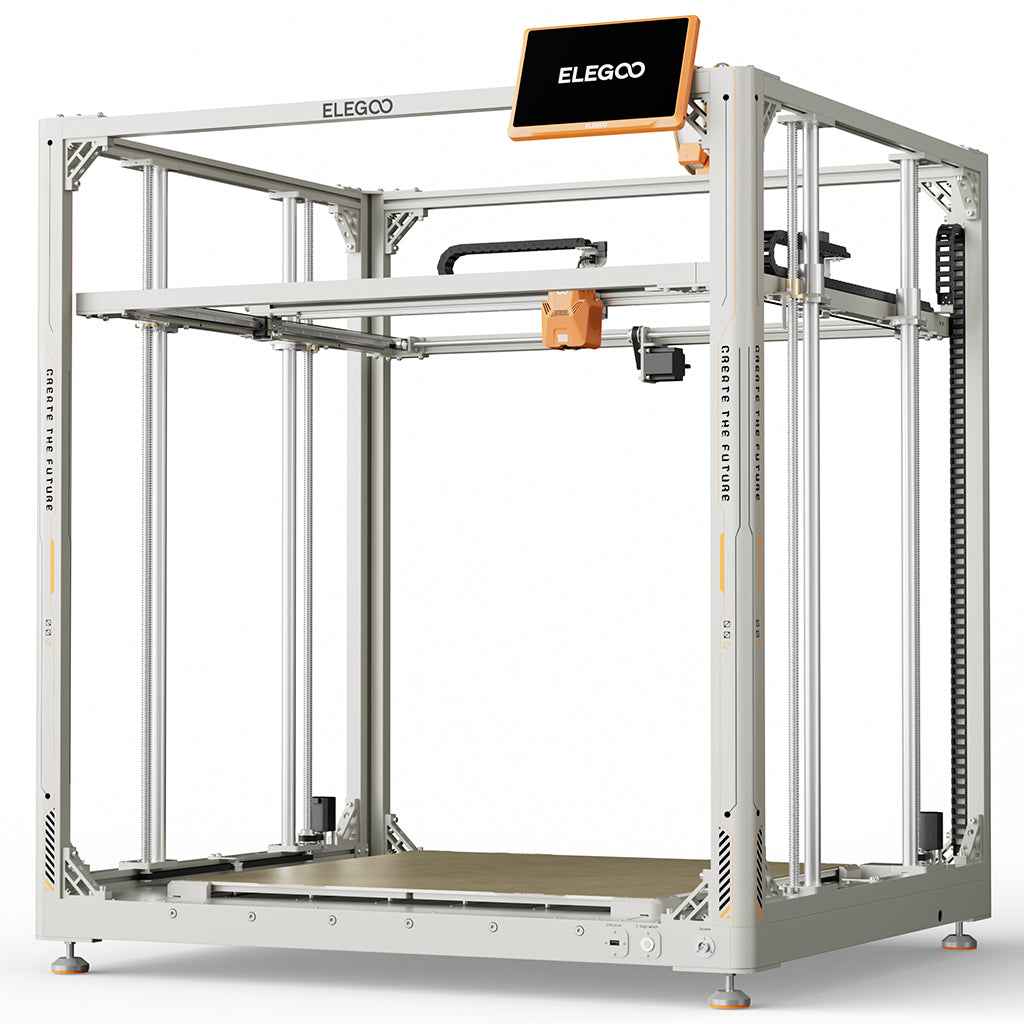

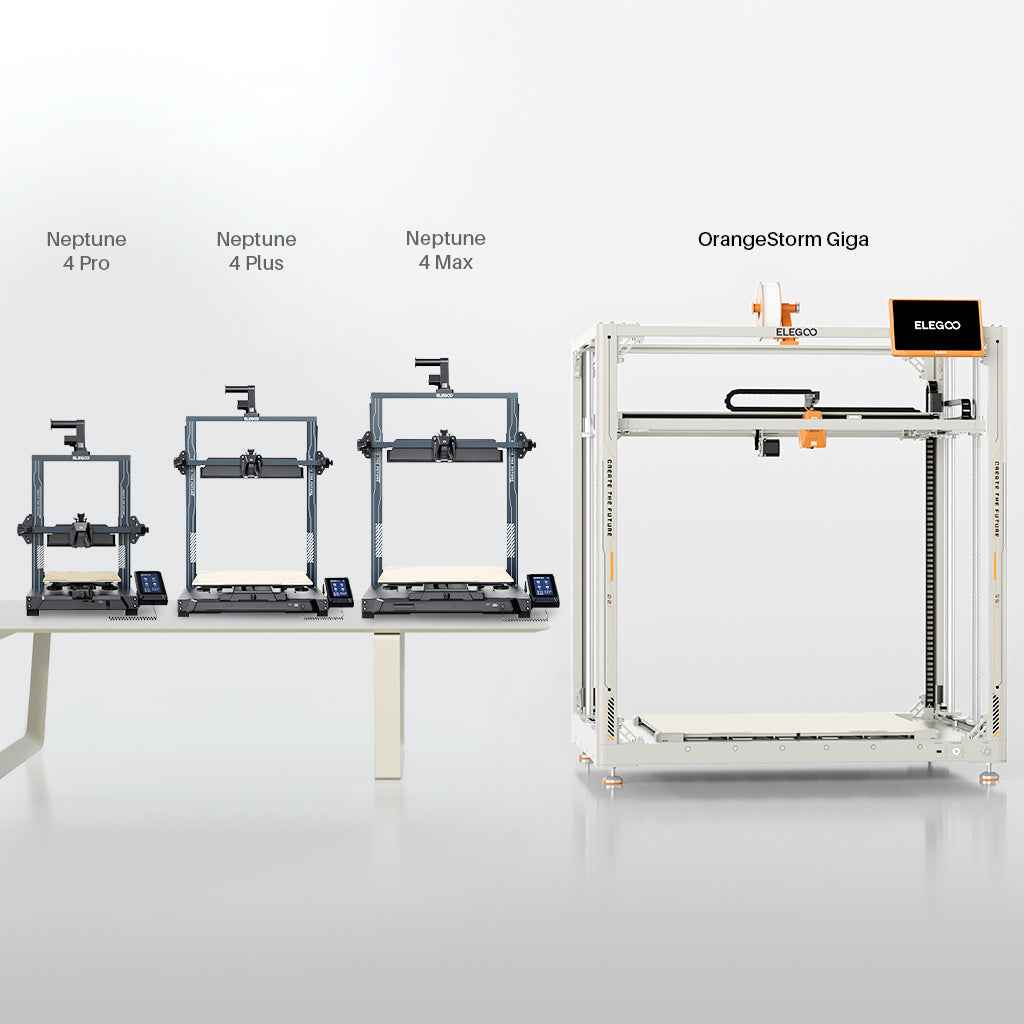

OrangeStorm Giga - FDM

Technical Specifications

• Printing Technology: FDM
• Build Volume: 800 × 800 × 1000 mm
• Printing Platform: 820 × 820 mm (configured as 4 × 410 × 410 mm plates)
• Supported Voltages: 100–240 V AC, 50/60 Hz
• Connectivity / File Transfer: USB, LAN, Wi‑Fi
• Filament Diameter: 1.75 mm
• Maximum Nozzle Temperature: Up to 300 °C
• Heated Bed: Yes
• Print Speed: Up to ~300 mm/s
• Frame: CNC-machined aluminum extrusion

What's in the Box

• Printer unit / frame / base
• Printhead
• Screen (touch screen)
• Leveling Plate × 2 pcs
• Spool Holder Arm
• Spool Holder (for filament)
• Filament Breakage Detector × 2 pcs
• Z-axis cable track clip
• Z-axis end stops × 2 pcs
• Filament guide assembly
• Detached spool holder assembly for 5 kg rolls
• Power cable
• Leveling card
• Grease (lubricant)
• Profile corner brackets × 8 pcs
• Tools & Fasteners
• User Manual / Documentation
